Kogawa Micro Transmitter - Apo33 The Noiser Remix

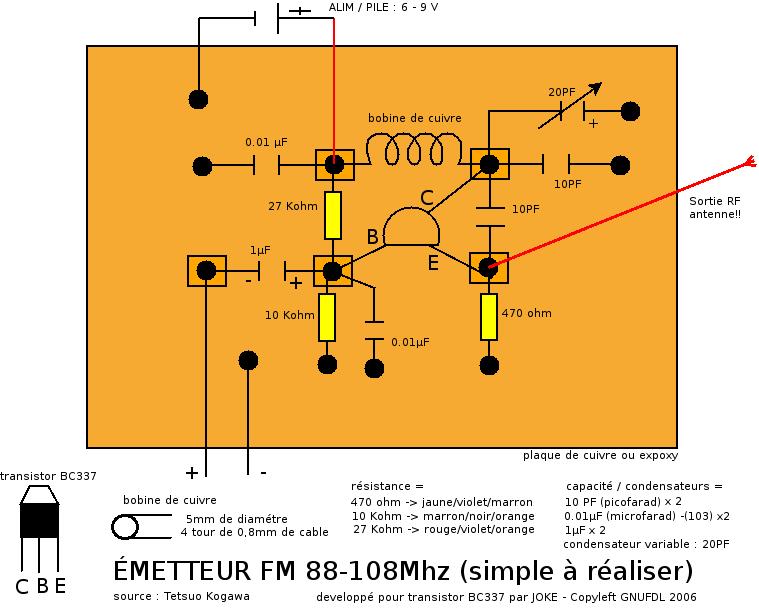

Kogawa's FM micro transmitter, adaptation 2006 pour BC337,
par Julien Ottavi aka The Noiser Apo33
Taken from Apo33 - CIA Practical Manual

Hardware :

• Transistor BC337 x1
• Résistance 470ohm
• Résistance 10 Kohm
• Résistance 27 Kohm
• capacités condensateurs
• 10 Pf x2
• 0n01 uF -(103) x2
• condensateur variable 20PF x1
• 1 pile 9V
• 1 antenne
• 1 bobine de cuivre, 5mm de diamètre, 4 tour de 0,8mm de cable

////

source :

Chaos Micromedia Project: Practical Manual, APO33

The Chaos Micromedia Project is an experiment in hacking, hijacking, and re-appropriating technology for the creation of autonomous and ephemeral media. This manual serves as a guide to building and deploying DIY FM/TV transmitters, amplifiers, and sound devices to create localized micro-broadcasts and experimental media environments.
